Spilldoc Emergency Eyewash Test Gauge

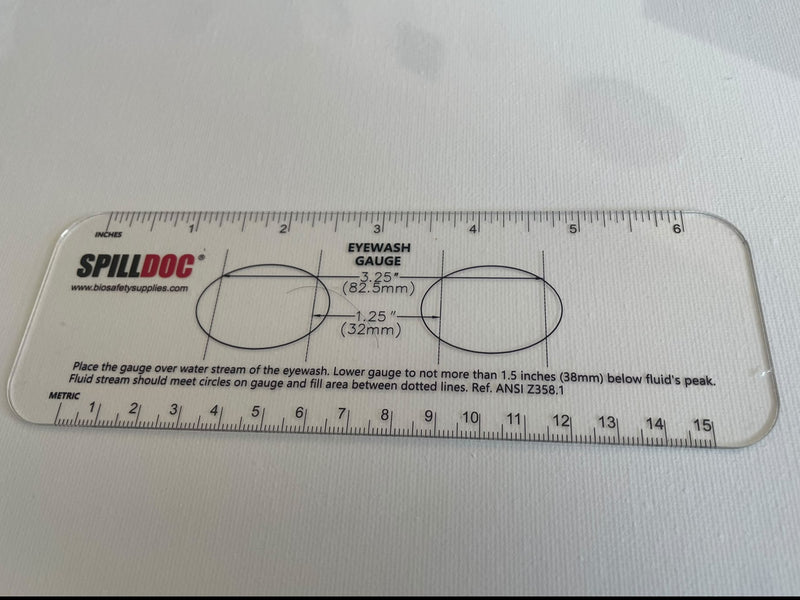

The Spilldoc Emergency Eyewash Test Gauge – SDETG is a purpose-designed inspection tool for checking the water-stream pattern and alignment of emergency eyewash units.

Manufactured from clear, durable material with permanently marked reference guides, the gauge allows safety personnel and maintenance teams to quickly verify that both eyewash streams are correctly positioned for simultaneous flushing of the eyes.

The gauge incorporates clearly defined eyewash stream target areas, dimensional reference markings and both metric and imperial rulers, making it a practical tool for routine workplace inspections, commissioning and preventative maintenance of emergency eyewash equipment.

Key Features

• Designed specifically for testing emergency eyewash water-stream patterns
• Dual target circles provide a clear visual reference for eyewash stream positioning
• Helps identify incorrectly aligned, uneven or poorly positioned eyewash streams
• Clear construction allows easy observation of water flow during testing
• Integrated metric and imperial measurement scales
• Reference dimensions marked directly on the gauge:
  • 3.25 in. (82.5 mm)
  • 1.25 in. (32 mm)
• Lightweight, portable and reusable
• Easy to clean after inspection
• Suitable for routine safety inspections and preventative maintenance
• Marked with reference to ANSI Z358.1 eyewash testing requirements

How to Use

Position the gauge over the operating eyewash water streams. Lower the gauge to no more than 1.5 inches (38 mm) below the peak of the water streams.

When correctly adjusted, the water streams should enter the indicated circular target areas and fill the designated area between the reference lines on the gauge.

This provides a quick visual indication of whether the eyewash spray pattern is correctly positioned for effective flushing.

Product Specifications

Applications

Ideal for use in laboratories, chemical plants, manufacturing facilities, workshops, hospitals, pharmaceutical facilities, warehouses, educational laboratories and other workplaces equipped with emergency eyewash stations.

Inspection Note

The SDETG is an inspection and alignment aid. It should be used as part of a complete emergency eyewash inspection and maintenance program. Eyewash equipment should be installed, operated and maintained in accordance with the applicable edition of ANSI/ISEA Z358.1, local regulations and the eyewash manufacturer's instructions.
