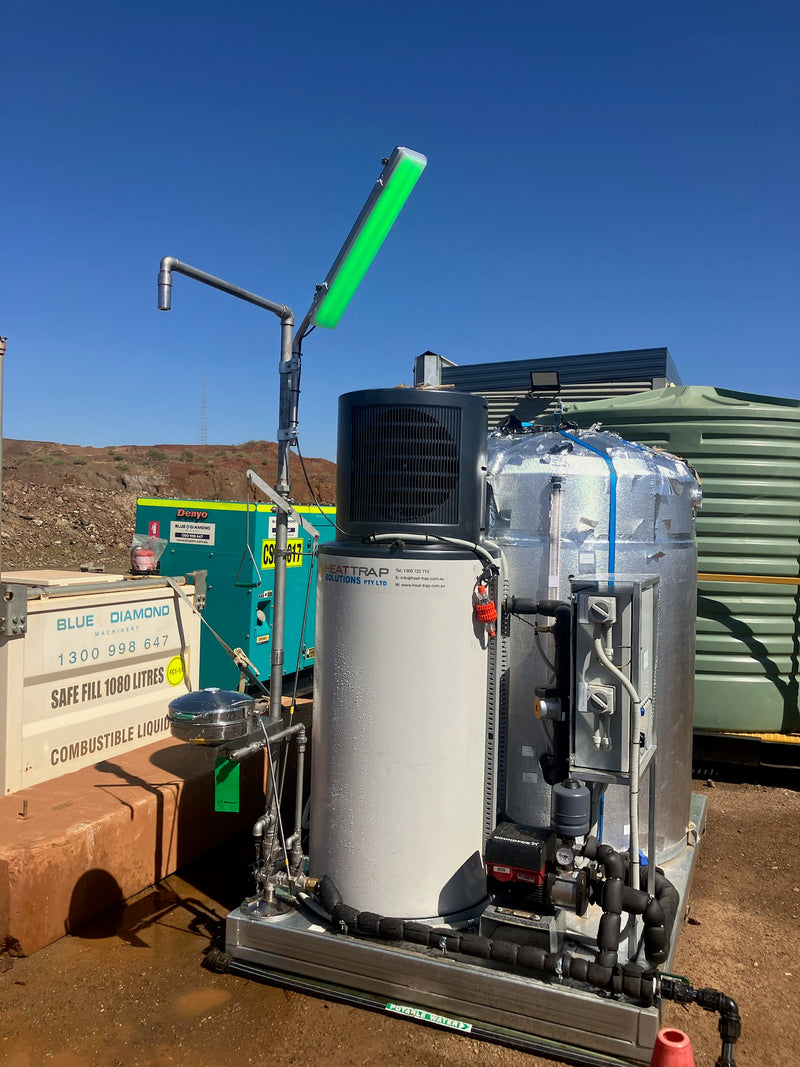

Portable Emergency Tank Shower & Eyewash 2500L with Chiller System
Part Number: SDSSCC2533
Product Origin: Australia
Warranty: 5 Years from supply against manufacturing defects
Integrated Flo-Thru Eyewash & Safety Shower
Product Overview
Our Portable Emergency Tank Shower & Eyewash Chiller System (SDSSCC2533) is a fully integrated, skid-mounted, temperature-controlled emergency response solution designed for hot, remote, and high-risk industrial environments.
The system ensures safe tepid water delivery in accordance with AS 4775, even when incoming water temperatures exceed 50°C.
Key Applications
• Mining & Resources
• Oil & Gas
• Petrochemical Facilities
• Remote & Desert Sites
• Middle East Operations
Key Features & Benefits
• Temperature-controlled tepid water delivery ≤ 37.8°C
• Integrated 2,500L chilled potable water storage
• Continuous recirculation – no dead legs
• UV sterilisation for Legionella control
• Flo-Thru fully flushed self-draining eyewash & shower
• Skid-mounted, transportable design
• Visual alarms and fault monitoring
Technical Specifications
Chilled Water Storage: 2,500L insulated poly tank
Pressure Pump: Grundfos VSD CMB 5-47
UV Steriliser: ADVANCE C100
Refrigeration: HAIER 330L Heat Pump Chiller
Refrigerant: R290
Power Supply: 240V Single Phase
Max Inlet Pressure: 650 kPa
Dimensions: 1700 x 2500 x 2200 mm
Weight: Approx. 575 kg
Standards & Compliance
• AS 4775 Emergency Eyewash & Shower
• AS/NZS 4020:2018 Drinking Water Materials
Warranty
12 months from commissioning or 18 months from delivery, whichever occurs first.
Technical Data
|
Specifications - SSCC2533
|
|
Chilled water storage tank
|
|
2500 litre roto-moulded industrial strength poly tank with 25mm foil-faced elastomeric insulation
|
|
Pressure pump set
|
|
Grundfos VSD CMB 5-47
|
|
Potable water storage temp
|
|
25oC + 5 oC
ି
|
|
Skid mount framing
|
|
150mm x 50 x 2.5mm RHS Galvanised steel
|
|
Insulation
|
|
Foil faced elastomeric tank insulation and elastomeric pipe insulation
|
|
Refrigeration plant
|
|
HAIER 330L Heat Pump Chiller
|
|
Refrigerant gas
|
|
R290
|
|
Refrigerant Separation
|
|
Refrigeration coil wrapped around the outside of the tank under polyurethane foam insulation
|
|
Temperature control
|
|
Treble thermistor tank sensors
|
|
UV Sterilizer
|
|
ADVANCE C100 5 L/minute
|
|
Circulating pump
|
|
Grundfos UPS 15-20
|
|
Water Inlet/Outlet fittings
|
|
G 1¼”
|
|
Recirculation fitting
|
|
G ¾”
|
|
Power consumption
|
|
Heat Pump Chiller Maximum 8 amp 240V single phase
|
|
Maximum inlet pressure
|
|
650kPa
|
|
Minimum inlet pressure
|
|
150 kPa dynamic at 100 LPM
|
|
Physical Dimensions
|
|
W1,700*L2,500*H12,200
|
|
Weight
|
|
575 kg
|
|
Specifications - SDSC330
|
|
Chilled water storage tank
|
|
330 litre vitreous enamel lined steel tank with replaceable sacrificial anode
|
|
Cold Expansion Relief valve
|
|
RMC H75 850 kPa, 60KW
|
|
Chilled water storage temperature
|
|
4oC + 2 oC
ି
|
|
Skid mount framing
|
|
50mm x 2.5mm RHS Galvanised steel
|
|
Insulation
|
|
Rigid polystyrene foam tank insulation and elastomeric pipe insulation
|
|
Refrigeration plant
|
|
Heat Trap Solar + HAIER
|
|
Refrigerant gas
|
|
R290 470 grams
|
|
Refrigerant Separation
|
|
Dual Stainless Steel / Copper heat exchangers
|
|
Temperature control
|
|
Treble tank thermistors
|
|
UV Sterilizer
|
|
ADVANCE C100
|
|
Circulating pump
|
|
Grundfos UPS 15-20 CIL2
|
|
Water Inlet/Outlet fittings
|
|
G 1¼”
|
|
Recirculation fitting
|
|
G ¾”
|
|
Power consumption
|
|
Single phase 240V Maximum 5 amp
|
|
Maximum inlet pressure
|
|
650kPa
|
|
Minimum inlet pressure
|
|
350 kPa dynamic at 100 LPM
|
|
Dump solenoid
|
|
Process Systems ES55-2-2-8V
|
|
Physical Dimensions
|
|
W1,100*L1,100*H1,950
|
|
Weight
|
|
275 kg
|

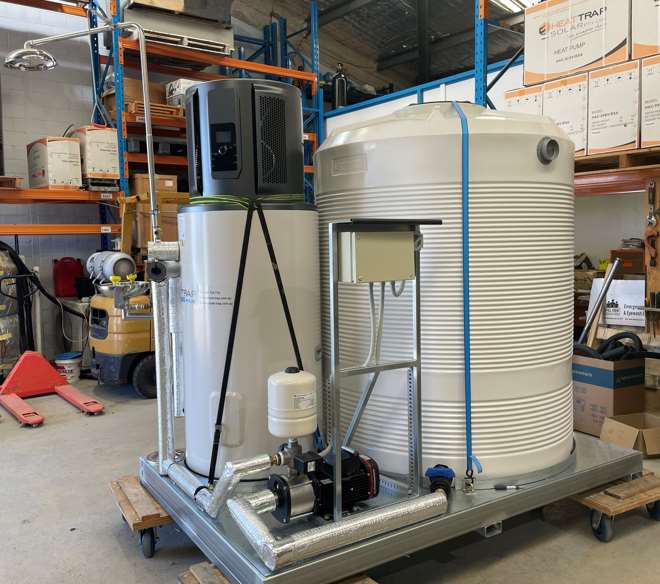

Product Inclusive of:
- Roto-moulded 2,500L tank with foil-faced elastomeric insulation and Galvabond SHS steel skid
- HAIER 330L Heat Pump Chiller, Grundfos circulation pump and UV sterilizer
- Grundfos CMN 5-47 VSD pressure pump with pressure tank
- HTS Flo-Thru Fully flushed and Self-draining eye/facewash safety shower installed on the skid
- LED Green light on pole
- Recommended Essential Chiller Spares
(Insulation is optional)
Prices are indicative, based on ex-works Perth.
Delivery charges +Onsite Commissining to be quoted
