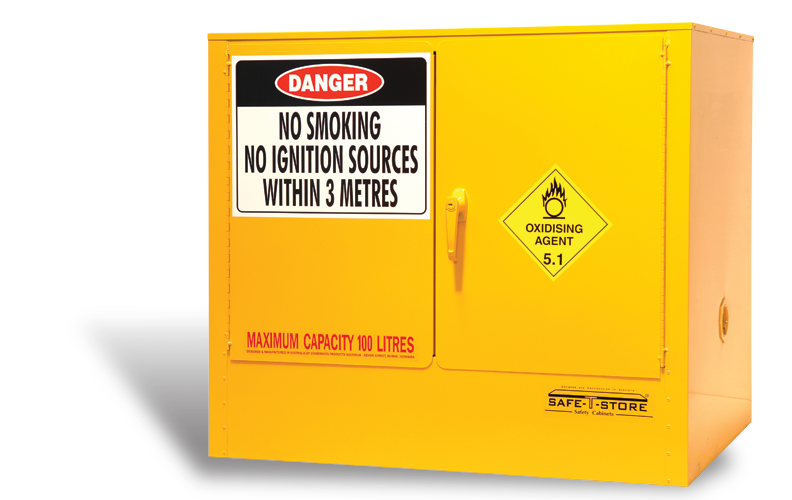

100L - Oxidising Agent Storage Cabinet
Part Number: SC100A
DOWNLOAD CATALOUGE
Description
The SC100A is an indoor chemical cabinet specifically designed for Class 5.1 Oxidising Agents (100 litre capacity). Now you can safely isolate your oxidisers from flammables and other incompatible substances without having to store them outside.
Features of the SC100A include: twin hydraulic action doors that close automatically (in sequence), perforated shelving, built in flash arrestors, and a high-tech powder coat finish (no corrosion). Mandatory placards and signs are fixed to the exterior of the unit.
The SC100A is part of the SAFE-T-STORE series — a range of indoor chemical stores with units available in most classes of Dangerous Goods. Designed and manufactured in Australia — S0100A is complies with AS1940-2017 standards.
Order your oxidising agent cabinet from Bio-Safety Supplies today.
Product Features
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills - 150mm deep
- Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet
- Built in flash arrestors and vent openings [for mechanical ventilation systems]
- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance
- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 4326:2008 - The storage and handling of oxidising agents.
Dimensions (mm)
| External | H 800 | W 920 | D 615 |
| Internal | H 553 | W 838 | D 535 |
Storage Capacity
| Max Capacity | 100L |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 96 | 18 | 8 |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 16 | 4 | - | - |
Compliance
| Complies with | AS4326 - 2008 |
| Sump Capacity | 67L |
Other Specification
| Weight | 65.0 kg |
| Shelf Levels | 2 |
| Storage Levels | 2 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 50 |
| No. of Shelf Lugs | 11 |
