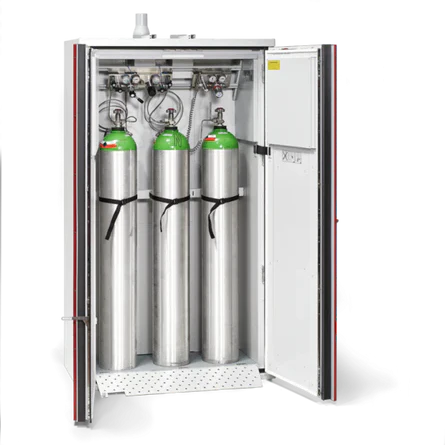

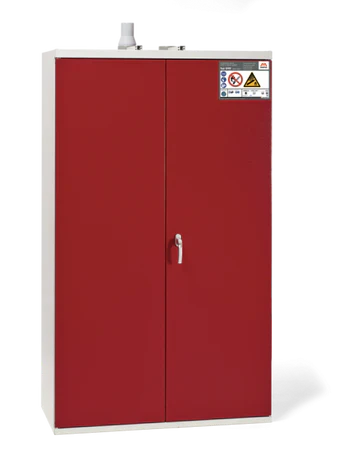

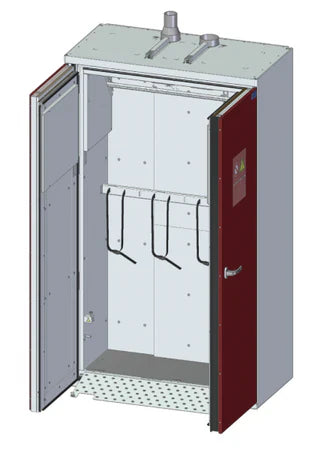

Supreme Line Compressed Gas Cylinders Indoor Storage - 3 Cylinder
79-201260-021
Download Catalogue
|
Field of Application: |
Compressed gas cylinders indoor storage |
|
Width: |
1195 mm |
|
Depth: |
610 mm |
|
Height: |
2070 mm |
|
Weight: |
595 kg |
Classical door technology (door handle). For the storage of pressurised gas cylinders. Type testing by MPA/TÜV SÜD according to DIN EN 14470-2, DIN EN 16121 and DIN EN 16122, EK5/AK4 09-10:2009 and AfPS GS 2014:01 PAK Mark of approval: GS/CE mark, high quality mark of approval by TÜV SÜD Construction and colour:
Product Features
-
Outer carcass sheet steel, RAL 7035
-
Doors sheet steel, RAL 3003
-
Inner carcass of decor panels, RAL 7035 Fittings and features:
-
Cylinder lock for safe access
-
Roll-in flap with pitch
-
Cylinder holder incl 4 retaining belts
-
Fitting holder
-
Exhaust air connection socket on the cabinet roof
Technical Details
Category: Type G90 - storage of gas
No of Cylinders: 3
Outer width [mm]: 1.195
Outer depth [mm]: 610
Outer height [mm]: 2.070
Net weight [kg]: 595,00
Number of storage levels 1
Number of storage areas per storage level 1
Door operation classical technology
Door technology wing door technology
