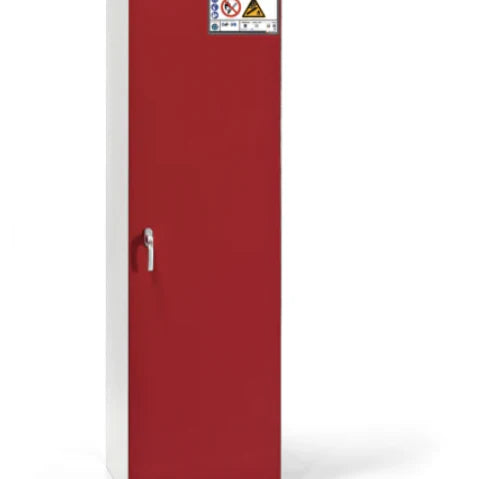

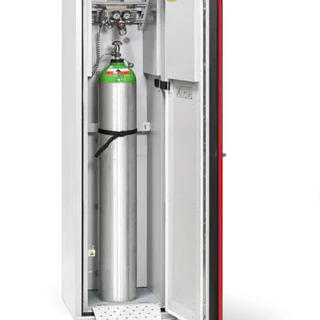

Supreme Line Compressed Gas Cylinders Indoor Storage - 1 Cylinder
79-200660-021
Download Catalogue
|
Field of Application: |
Compressed gas cylinders indoor storage |
|
Width: |
595 mm |
|
Depth: |
610 mm |
|
Height: |
2070 mm |
|
Weight: |
350 kg |
Classical door technology (door handle), door hung right. For the storage of pressurised gas cylinders. Type testing by MPA/TÜV SÜD according to DIN EN 14470-2, DIN EN 16121 and DIN EN 16122, EK5/AK4 09-10:2009 and AfPS GS 2014:01 PAK Mark of approval: GS/CE mark, high quality mark of approval by TÜV SÜD
Product Features
-
Outer carcass sheet steel, RAL 7035
-
Door sheet steel, RAL 3003
-
Inner carcass of decor panels, RAL 7035 Fittings and features:
-
Cylinder lock for safe access
-
Roll-in flap with pitch
-
Cylinder holder incl 2 retaining belts
-
Fitting holder
-
Exhaust air connection socket on the cabinet roof
Technical Details
Category: Type G90 - storage of gas
Number of Cylinders: 1
Outer width [mm]: 595 Outer depth [mm]: 610
Outer height [mm]: 2.070 Net weight [kg]: 350,00
Number of storage levels 1
Number of storage areas per storage level 1
Door operation classical technology
Door technology wing door technology
