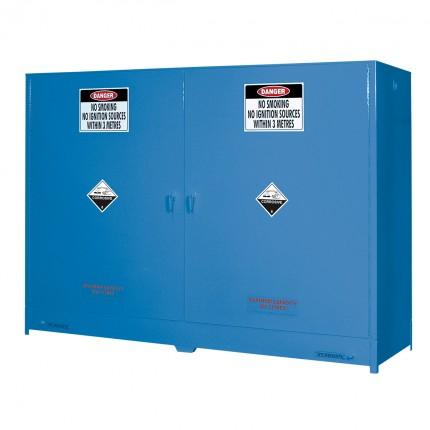

Do you need a compliant chemical safety cabinet, purpose built for larger volumes of Class 8 corrosive substances? The PS8508SS is heavy duty safety (25% stronger than standard) and able to safely hold and isolate 850 litres of corrosives from incompatible substances and Dangerous Goods.
Features of the PS8508SS include: 270 litre spill containment sump (with drain plug), twin hydraulic-action doors which close in sequence; 6 adjustable layers of shelving; vent openings and flash arrestors that fit your mechanical ventilation system.
Product Features
- Manufactured from 25% heavier materials than minimum requirement
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills with a fixed suspended perforated floor - 150mm deep
- The sump has the capacity to contain 25% of the aggregate capacity of the cabinet
- Self-closing, close fitting doors held shut by catches at 2 points. The doors do not open inwards and are capable of being opened from within the cabinet
- Unique spark-proof, self latching locking system with lockable handle
- Vent openings with built-in flash arrestors [for mechanical ventilation systems]
- Continuous stainless steel pin hinging for maximum strength and reliability
- State of the art powder coat finish for high durability and performance
- PVC spill trays on shelves for corrosion protection
- Safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 3780:2008 - The storage and handling of corrosive substances
Dimensions (mm)
| External | HĀ 1880 | WĀ 2588 | DĀ 804 |
| Internal | HĀ 1608 | WĀ 2500 | DĀ 718 |

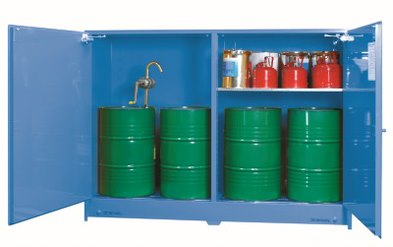

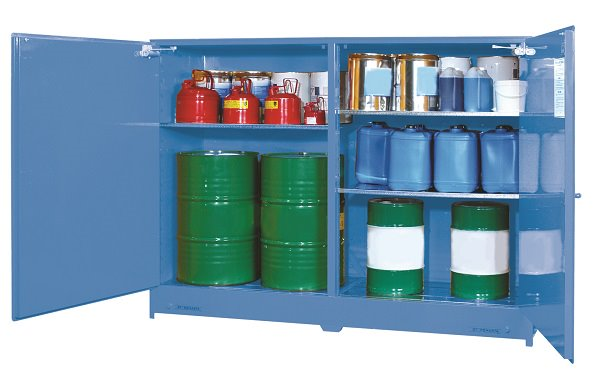

Ā Storage Capacity
| Max Capacity | 850L |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 1980**** | 360**** | 144**** |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 180***** | 48 | 12 | 4 |
Compliance
| Complies with | AS3780 - 2008 |
| Sump Capacity | 269L |
Ā Other Specification
| Weight | 375.0 kg |
| Shelf Levels | 6 |
| Storage Levels | 3 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 100 |
| No. of Shelf Lugs | 16 |
