450L - Large Capacity Corrosive Substance Storage Cabinet
Require Official Quote and Tax Invoice?
Click Request a Quote, fill up the details and submit.
[At the payment section, select Request a Quote or Request a Tax Invoice. (You dont need to make payment doing so).]
Alternatively, you may also send us an email to sales@spilldoc.com.au with your company details and purchase requirements.
Once received your submission, our local sales team will contact you within 1 business day.

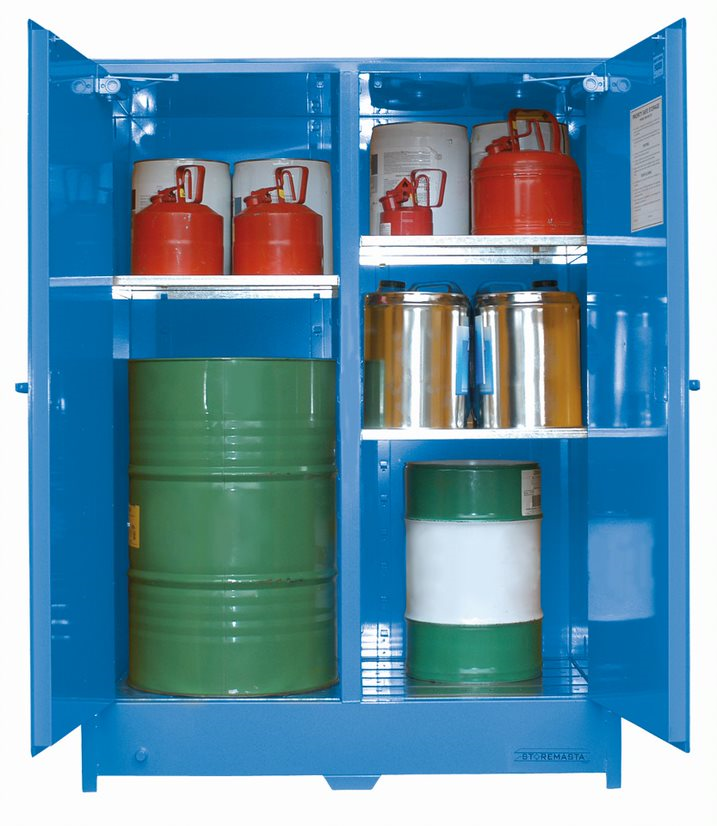

The PS4508SS is a heavy duty safety cabinet for storing larger quantities of Class 8 corrosive substances (450 litre capacity). This chemical cabinet is 25% stronger than standard cabinets for corrosive substances, and will safely isolate your corrosives from incompatible substances and Dangerous Goods.
Features of the PS4508SS include: twin hydraulic-action doors which automatically close in sequence (no jamming or sparking); 2-PACK corrosion-free polyurethane finish; warning placards, and a compliant spill sump.
Product Features
- Manufactured from 25% heavier materials than minimum requirement
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills with a fixed suspended perforated floor - 150mm deep
- The sump has the capacity to contain 25% of the aggregate capacity of the cabinet
- Self-closing, close fitting doors held shut by catches at 2 points. The doors do not open inwards and are capable of being opened from within the cabinet
- Unique spark-proof, self latching locking system with lockable handle
- Vent openings with built-in flash arrestors [for mechanical ventilation systems]
- Continuous stainless steel pin hinging for maximum strength and reliability
- State of the art powder coat finish for high durability and performance
- PVC spill trays on shelves for corrosion protection
- Safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 3780:2008 - The storage and handling of corrosive substances
Dimensions (mm)
| External | HĀ 1880 | WĀ 1386 | DĀ 804 |
| Internal | HĀ 1608 | WĀ 1302 | DĀ 718 |
Ā
Storage Capacity
| Max Capacity | 450L |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 990***** | 160**** | 72**** |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 90***** | 24 | 4 | 2 |
****4 Storage levels *****5 storage levels
Compliance
| Complies with | AS3780 - 2008 |
| Sump Capacity | 140L |
Ā Other Specification
Ā
| Weight | 220.0 kg |
| Shelf Levels | 6 |
| Storage Levels | 3 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 100 |
| No. of Shelf Lugs | 16 |
