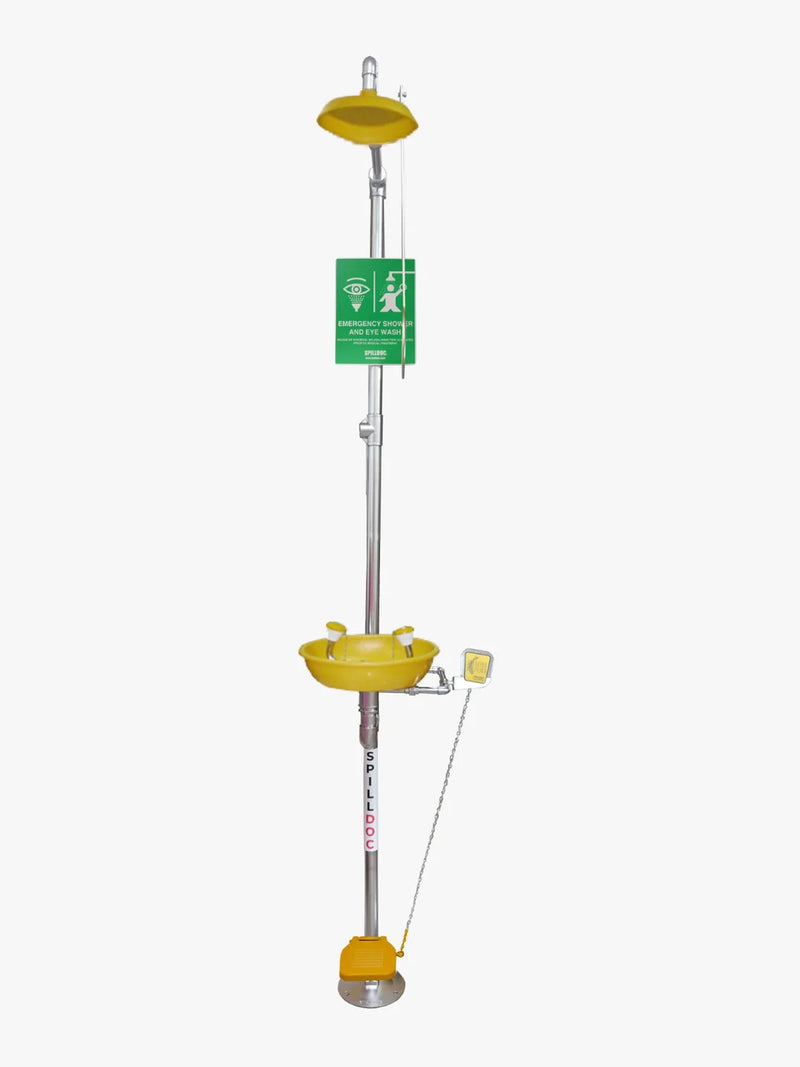

SPILLDOC COMBINATION SHOWER & EYEWASH STATION SDSE304N
c/w pressure reducing valve for eyewash
Material: 304 Stainless Steel & Nylon
Type: Floor Mounted Plumbed Combination Shower & Eyewash
Activation: Hand Push Plate & Foot Pedal
Standard: ANSI/ISEA Z358.1-2014, CNSI14251 T2048-1998, DIN 12899
Warranty: 2 Years from product supply against manufacturing defects
Download Catalogue
Technical Details
| Model | SDSE304N |
|
Dimension
|
All height ═ 2350㎜ |
| Shower height ═ 2150㎜ | |
| Eyewash height ═ 1080㎜ | |
|
Bore
|
Supply water：1-1/4" SUS304# stainless |
| Waste bore：1-1/4" SUS304# stainless | |
| Shower tube： 3/4" SUS304# stainless | |
| Eyewash tube： 3/8" SUS304# stainless | |
|
Connection
|
Supply water：1-1/4" D (PT) |
| Waste bore：1-1/4" D (PT) | |
|
Spary
Head |
Eyewash head are Nylon material，Φ50㎜ x 44(H)㎜，include two kind filters, with yellow plastic floating cover. Basin dimensionΦ345㎜. |
| Shower head are Nylon material.DimensionΦ200㎜. | |
| Hydraulic pressure |
Above 1 kg/cm2 |
|
Action
|
Shower : A stainless actuator(stay open or close) |

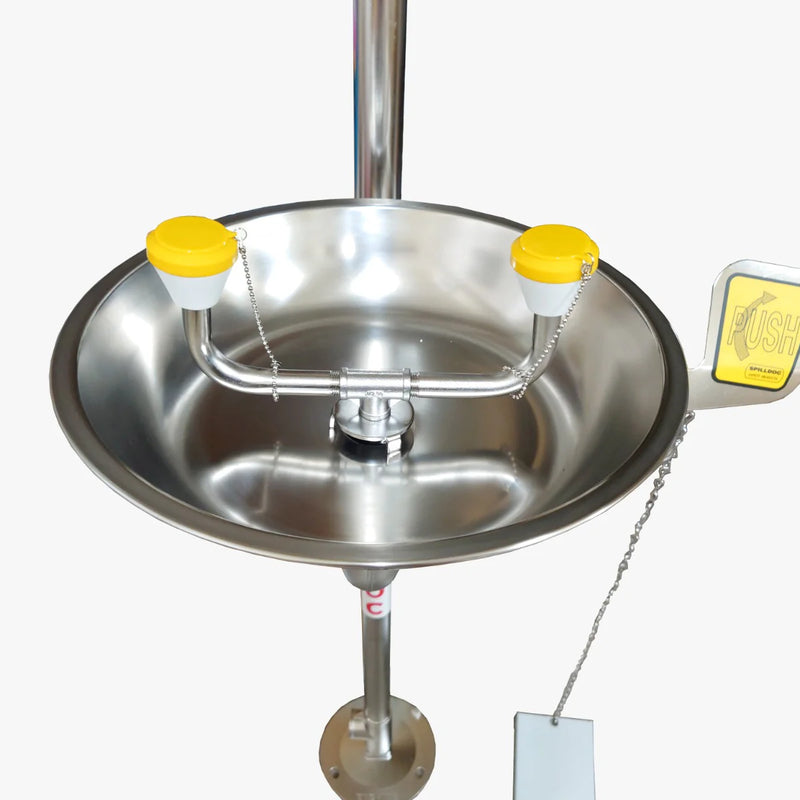

| Eyewash : Hand and foot operated with special 8 shape stainless chain. |
|
|
Features
|
1. All tube are stainless SUS304# material with special antirust process |
| 2. Included sign(305 x 230㎜，English with graph) | |
| 3. Meet ANSI/ISEA Z358.1-2014, CNSI14251 T2048-1998, DIN 12899 | |
| 4. Dimension Error ±2% |
Features： All tubes are stainless SUS304# material , with special antirust process, shower head and Eyewash bowl and Nylon material
Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and other contaminated environment where may be burning.
This floor mounted Safety shower & eye wash station SDSE304 is used to temporarily slow down the further harm of harmful substances to the body, face and eyes of the staff when toxic and harmful substances (such as chemical liquid, etc.) are splashed on the staff's body, face and eyes, or the fire causes the staff's clothes to catch fire. Further treatment and treatment need to follow the doctor's guidance to avoid or reduce unnecessary accidents.
